Description

ZW32-12 series pillar type outdoor vacuum breaker is a kind of outdoor high voltage switch equipment with 50Hz three-phase alternating current and 12kV rated v oltage.It apply to treak and close the load current,overload current and short-circuit current in cities or conuntry power distribution system.

Standard
IEC60947-1, IEC60947-2, IEC60947-4

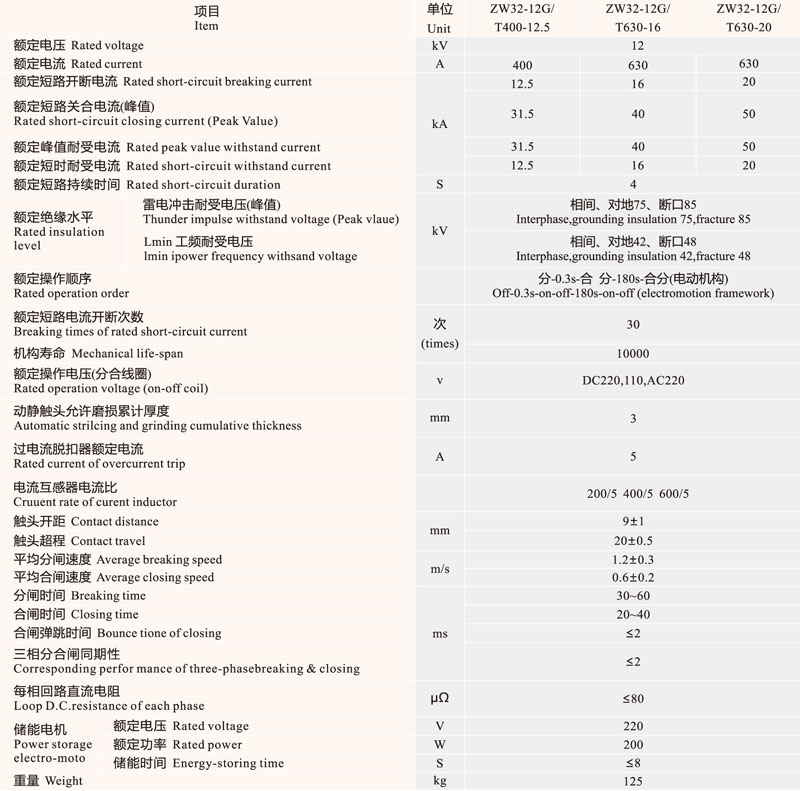

Specification

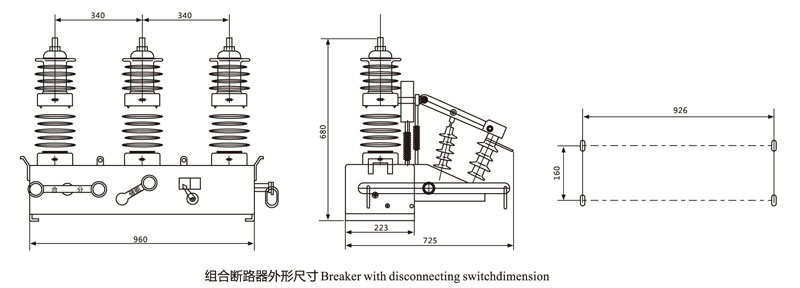

Overall and Mounting Dimensions(mm)
