Description
YCW1-6300 Intelligent Air Circuit Breaker are applied for the network circuit of AC 50HZ, rated voltage 400V, 690V and rated current between 630A and 6300A.Mainly used for distributing energy and protecting the circuit and power supply device against short-circuit, undervoltage, single-phase ground fault.The products conform with IEC60947-1, IEC60947-2 standard.

Standard
IEC60947-1, IEC60947-2, IEC60947-4

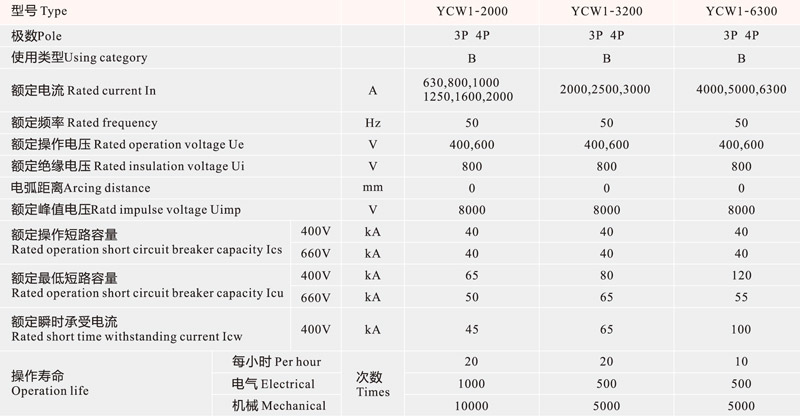

Specification

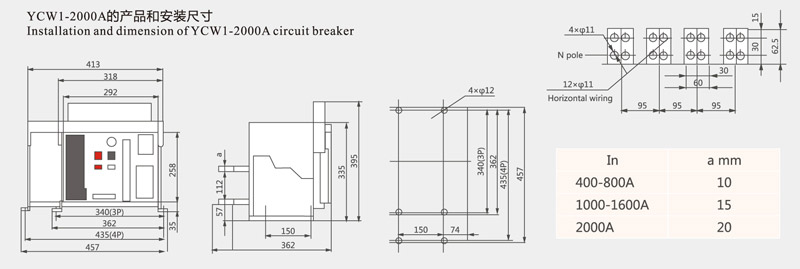

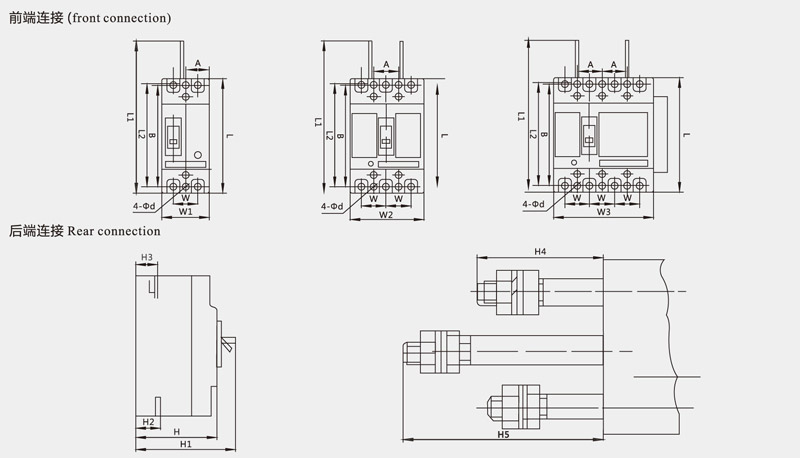

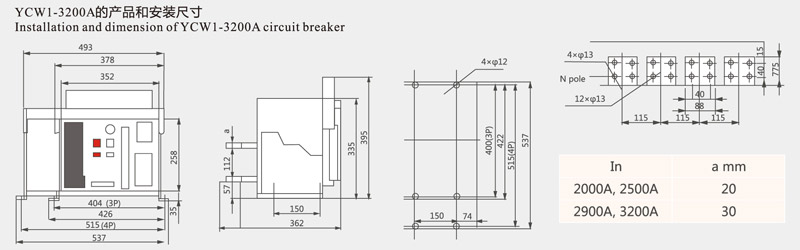

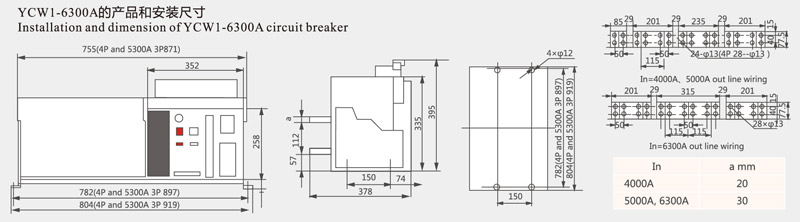

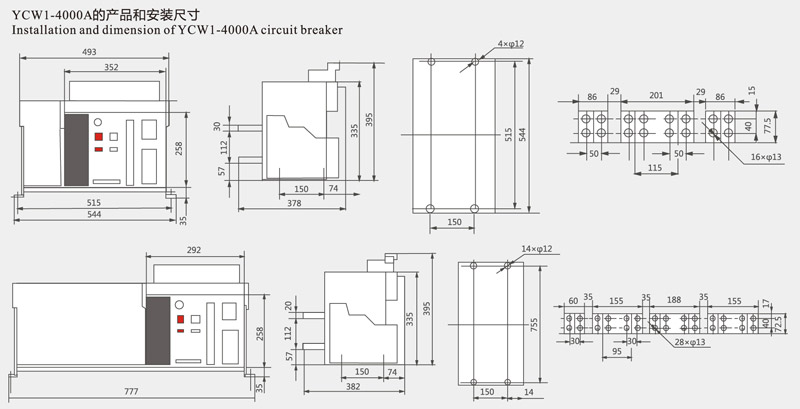

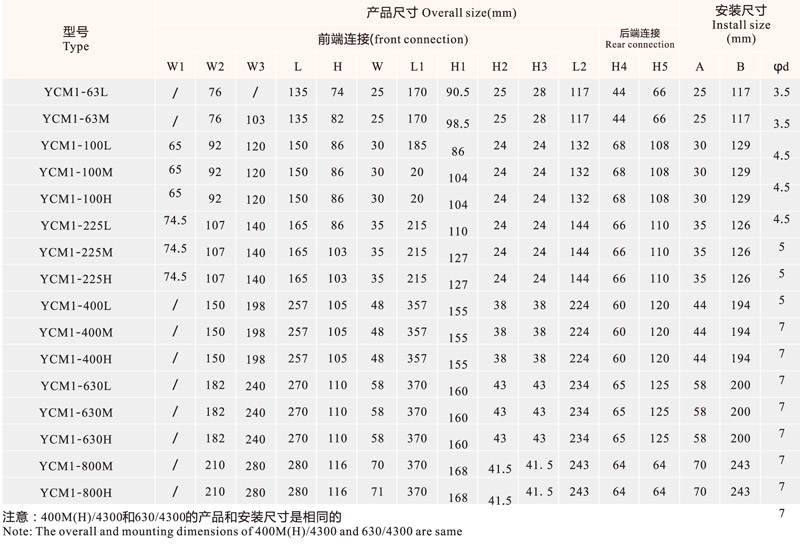

Overall and Mounting Dimensions(mm)
